COLORED GLASS FILTERS
Sharp Cut Filters (W series)
HOYA CORPORATION OPTICS SECTION is developed and released sharp cut filters with top quality and excellent optical performance.
The ″W series″ meets the requirements of the market in all aspects.
Data shows in the chart indicates in Internal Transmittance.
Application: Camera, Security

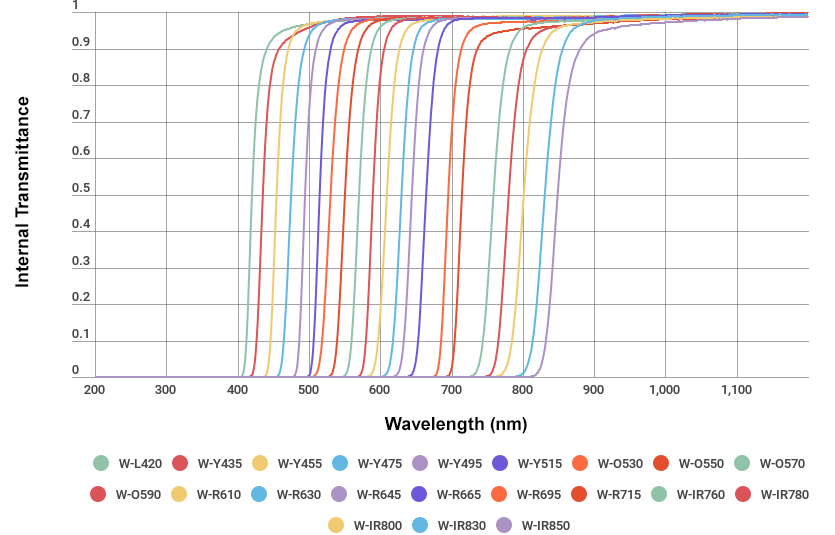

Transmittance（Internal Transmittance）
Sharp Cut Filters (W series): Data
| Item | Standard Value | Color specification (Standard illuminants A) | Thickness | Refractive Index | Chemical property | Thermal properties | Mechanical properties | Specific gravity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| λT (nm) | x | y | mm | 600nm | DW | DA | Tg | Ts | α -30/70 | α 100/300 | HK | FA | d | |
 W-L420 | 420±5 | 0.452 | 0.413 | 3.0 | 1.530 | 2 | 1 | 550 | 600 | 92 | 105 | 540 | 130 | 2.59 |
| W-Y435 | 435±5 | 0.460 | 0.421 | 3.0 | 1.531 | 1 | 2 | 570 | 600 | 99 | 107 | 540 | 130 | 2.59 |
| W-Y455 | 455±5 | 0.473 | 0.440 | 3.0 | 1.530 | 3 | 1 | 560 | 625 | 94 | 105 | 540 | 130 | 2.67 |
| W-Y475 | 475±5 | 0.493 | 0.462 | 3.0 | 1.530 | 3 | 1 | 560 | 625 | 94 | 105 | 540 | 130 | 2.67 |
| W-Y495 | 495±5 | 0.510 | 0.472 | 3.0 | 1.530 | 3 | 1 | 560 | 625 | 94 | 105 | 540 | 130 | 2.67 |
| W-Y515 | 515±5 | 0.530 | 0.464 | 3.0 | 1.529 | 2 | 1 | 560 | 620 | 96 | 108 | 540 | 130 | 2.68 |
| W-O530 | 530±5 | 0.552 | 0.445 | 3.0 | 1.529 | 1 | 1 | 560 | 625 | 99 | 107 | 520 | 140 | 2.68 |
| W-O550 | 550±5 | 0.589 | 0.410 | 3.0 | 1.528 | 1 | 1 | 560 | 625 | 93 | 104 | 520 | 140 | 2.68 |
| W-O570 | 570±5 | 0.630 | 0.370 | 3.0 | 1.529 | 1 | 1 | 560 | 625 | 93 | 104 | 520 | 140 | 2.68 |
| W-O590 | 590±5 | 0.670 | 0.330 | 3.0 | 1.530 | 1 | 1 | 560 | 625 | 93 | 104 | 520 | 140 | 2.68 |
| W-R610 | 610±5 | 0.698 | 0.301 | 3.0 | 1.531 | 1 | 2 | 560 | 620 | 93 | 103 | 520 | 140 | 2.69 |
| W-R630 | 630±5 | 0.718 | 0.281 | 3.0 | 1.530 | 1 | 1 | 560 | 620 | 95 | 107 | 520 | 140 | 2.68 |
| W-R645 | 645±5 | – | – | 3.0 | 1.531 | 1 | 1 | 555 | 620 | 94 | 106 | 520 | 140 | 2.68 |
| W-R665 | 665±5 | – | – | 3.0 | 1.530 | 1 | 1 | 555 | 620 | 94 | 106 | 520 | 140 | 2.68 |
| W-R695 | 695±5 | – | – | 3.0 | 1.547 | 1 | 3 | 525 | 575 | 98 | 115 | 470 | 160 | 2.86 |
| W-R715 | 715±8 | – | – | 3.0 | 1.549 | 1 | 3 | 525 | 575 | 100 | 116 | 470 | 160 | 2.86 |
| W-IR760 | 760±8 | – | – | 3.0 | 1.566 | 4 | 5 | 550 | 605 | – | 108 | 415 | 200 | 2.97 |
| W-IR780 | 780±8 | – | – | 3.0 | 1.566 | 4 | 5 | 550 | 605 | – | 108 | 415 | 200 | 2.97 |
| W-IR800 | 800±8 | – | – | 3.0 | 1.570 | 4 | 5 | 555 | 610 | – | 102 | 425 | 190 | 3.01 |
| W-IR830 | 830±8 | – | – | 3.0 | 1.572 | 4 | 5 | 545 | 615 | – | 104 | 425 | 190 | 3.03 |
| W-IR850 | 850±8 | – | – | 3.0 | 1.575 | 4 | 5 | 550 | 610 | – | 104 | 420 | 190 | 3.04 |
* The listed data are standard values. As we are always improving our products, the data listed are subject to change without notice.
