COLORED GLASS FILTERS
Color Compensating Filters (C)
These filter types selectively absorb in the red and near-infrared wavelength regions and compensates for imaging sensitivity and exposure meter sensitivity.
Application: Camera, Display

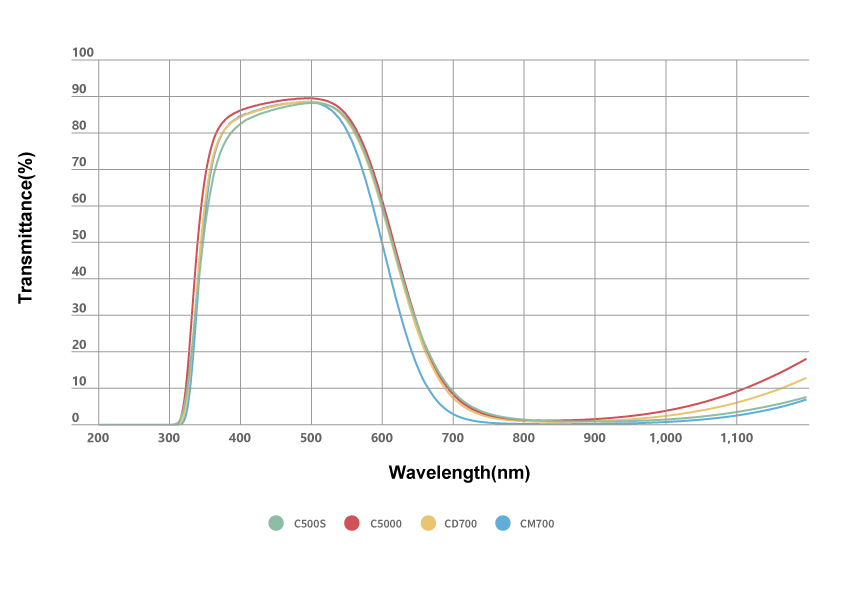

Transmittance
Color Compensating Filter: Data
| Element | Stärke | Durchlässigkeitsdaten | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | T400% | T500% | T600% | T700% | T750% | T850% | T1000% | T1100% | T1200% | λ50%(nm) | |
 C500S | 1 | = 80 | = 88 | = 58 | = 11 | = 4 | = 1,5 | – | – | – | 616±6nm |
| C5000 | 1 | = 86 | = 89 | = 60 | = 10 | – | – | = 5 | = 11 | = 23 | 618±6nm |
| CD700 | 0.45 | ≥ 83 | ≥ 87 | ≥ 57 | ≤ 9 | – | – | – | – | ≤ 16 | 613±4nm |
| CM700 | 1 | ≥ 82 | ≥ 86 | – | ≤ 6 | – | – | – | – | ≤ 10 | 602±4nm |
| Element | Farbspezifikation (Standardlichtquellen A) | Stärke | Reflexions- Index | Chemische Eigenschaft | Thermische Eigenschaften | Mechanische Eigenschaften | Relative Dichte | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | mm | 600 nm | DW | DA | Tg | Ts | a -30/70 | a 100/300 | HK | FA | d | |
| C500S | 0.392 | 0.426 | 1 | 1.514 | 1 | 1 | 615 | 675 | 54 | 70 | 485 | 120 | 2.54 |
| C5000 | 0.387 | 0.425 | 1 | 1.514 | 2 | 4 | 370 | 405 | 127 | 158 | 380 | 520 | 3.4 |
| CD700 | 0.389 | 0.425 | 0.45 | 1.539 | 1 | 4 | 425 | 471 | 117 | 141 | 370 | 490 | 3.08 |
| CM700 | 0.366 | 0.429 | 1 | 1.539 | 1 | 4 | 429 | 474 | 118 | 141 | 375 | 490 | 3.07 |
* The listed data are standard values. As we are always improving our products, the data listed are subject to change without notice.
